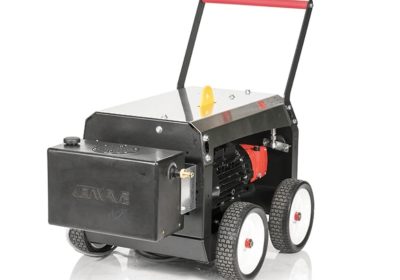

POWER SOURCE
Italian heavy-duty 3 HP (2.2kW) electric motor – class ‘H’ wound. 240 volt, 15 Amp capacity 10 meters of 15 Amp lead with 15 Amp plug. 20 Amp/2-pole On/Off switchPUMP
HAWK NHD1115 Triplex Pump rated at 2200 PSI max @ 11 LPM. The pump is de-rated** 1500 PSI @ 15 Amp to prolong pump life. Ceramic sleeved stainless steel piston plunger rods and brass pump head. Thermoshield to dump water over 63˚C.BY-PASS VALVE
Soft acting low to high PSI K7-1 by-pass valve. Zero PSI stored downstream when in by-pass – protects hose/gun assembly.SUPPLY
The water supply is via an industrial water filter to protect the pump from water line debris.DELIVERY
Heavy-duty glycerine-filled pressure gauge rated to 10,000 PSI. 0m R2 thick wall 3/8” HP Hose: Rated to 5000 PSI | 4x burst rating. | Hose end sleeved for operator protection. Italian-made dry gun with 900mm insulated | stainless steel lance. Stainless steel fan nozzle.FRAME
Ful…
